Servo Drives and Servo Motor

M5 Series Servo System

Specifications
  • Capacity :
  • - 0.1kW to 5kW (200V AC)
  • - 1.0kW to 15kW (400V AC)
  • Speed : 1500rpm / 3000rpm
  • Control : Pulse/Analog or Network
  • Encoder : Absolute type (standard)
  • Options : Oil Seal, Brake
Easy to Use
  • PC Tool for configuration, tuning & debugging
  • Easy gain tuning with automatic inertia estimating function
  • Rotary switch to configure the drive node address
LTSD-P Pulse/Analog type Drive
  • Supports Position Control by pulse input
  • Embedded Position Controls
  • Up to 64 Index Tables allows Position Control through I/O combination/table configuration
  • Possible to use without Upper controller
  • Modbus RTU Protocol (RS-422, 2 x RJ45 connector)
  • Parameter management through HMI
Enquiry Now
Intelligent Control
  • Notch Filter for resonance suppression
  • - 4-step notch filter
  • - 2-step vibration suppression filter at the load position
  • - FFT function for real-time frequency analysis
  • STO Mode
  • Various gain switching modes
High Performance
  • 1.6kHz Frequency response
  • 19bit Absolute encoder (standard)
  • FPU (Floating Point Unit)
  • Scalable analog output
LTSD-N Network type Drive
  • Built-in EtherCAT Interface
  • - 100BASE-TX Ethernet based communication
  • - High speed, real-time capability and precise synchronization mechanism
  • - Max. 100m between nodes (2 x RJ45 connector)
  • High speed position capture function
  • Supports various operation modes
  • - (CSP, CSV, CST, PP, PV, PT, HM, IP, etc.)
  • Control Up to 16 axis, Supports Virtual Axis

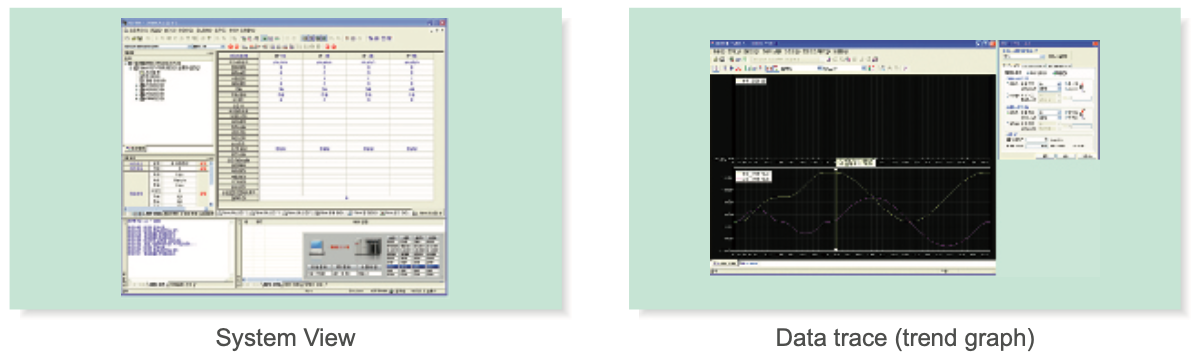

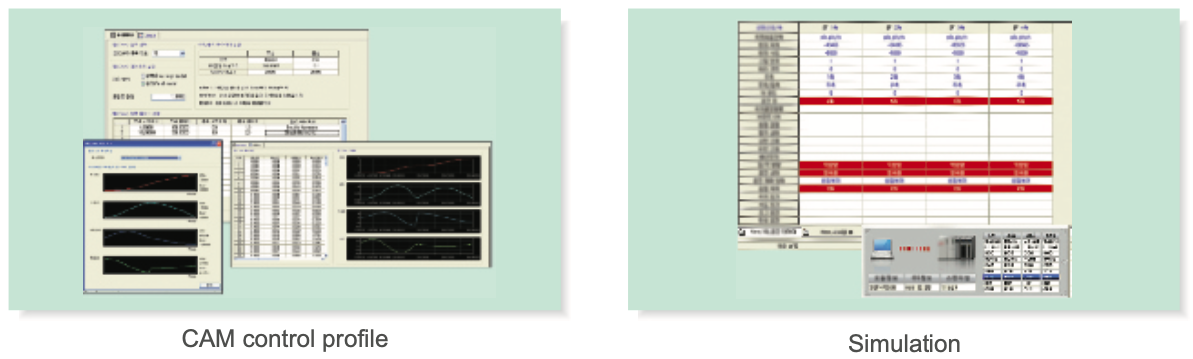

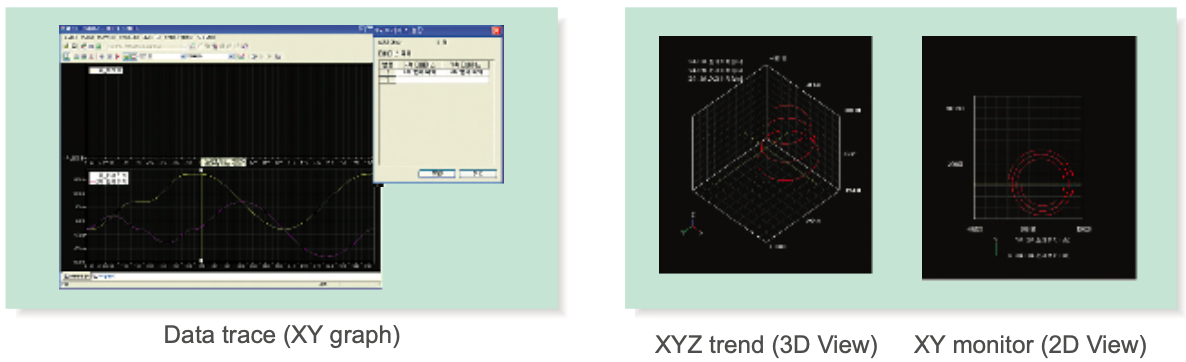

XL-PM Programming Tool

Configuration tool Simultaneous communications can be accessed with PLC Software Powerful simulation, trace, monitoring

Performance

  • CPU processing speed : 0.24μs/step
  • IO Points – Up to 38 local I/O points
  • Memory – Program memory : 50KB – Data memory : 128KB

Built-in Functions

  • Floating Point
  • HSC : High Speed Counter
  • – 1-Ph: 100kHz 2Ch, 20kHz 6Ch
  • – 2-Ph: 50kHz 1Ch, 8kHz 3Ch
  • Pulse catch Input
  • – 2pt, 10㎲
  • – 6pt, 50㎲
  • PID : 16 Loops
  • Interrupt : 25max
  • Positioning : 2 Axis, Open Collector, 100 kpps (Tr. Output only)
  • Communication Ports : 5nos
  • – 1 Ch USB
  • – 2 Chs RS-232C, RS-485
  • – 2 Communication modules
